Widely Used Efficient Lime Rotary Kiln Used In Large Active Lime Production Lines
Lime rotary kiln is a kind of equipment used to calcine limestone. It is mainly used in steel, chemical, building materials and other industries to produce active lime and light-burned dolomite.
Advantages of Lime Rotary Kiln
- High productivity makes it possible for our lime rotary kiln to be used in large active lime production line.
- Open-type calcining rotary kiln has a simple structure, and can discharge sulfurous gases timely, which makes it quite suitable for steelmaking.
- It is capable of calcining 10 to 50mm fine limestone directly.
- Vertical preheater has been equipped at the end of the kiln to make full use of high-temperature gases generated during calcining. It can preheat limestone to the decomposition conditions. In this way, it helps not only to increase the output, but also to decrease the heat consumption.
- The equipped vertical cooler at the head of the kiln can help cool the high-temperature limestone, as well as make it convenient to convey and store. Besides, it can effectively increase the temperature inside the kiln, thus reducing the fuel consumption.
- Waste gases, discharged from the vertical preheater, have a temperature ranging from 280℃ to 350℃, and their dust content is about 20g/Nm3. So it is easy to deal with these gases according to the requirements of environmental protection.
- With stable performance, our active lime calcining equipment is also suitable for mine exploitation
Technical Parameters Of Cement Rotary Kiln
| Capacity(t/d) | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | | 1000 | | | product | Active lime
Light burned dolomite | Active lime
Light burned dolomite | Active lime
Light burned dolomite | Active lime
Light burned dolomite | Active lime | Active lime | Active lime | Active lime | Active lime | Active lime | | Active lime | | | preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Circular vertical preheater | Multilateral vertical preheater | Multilateral vertical preheater | | Multilateral vertical preheater | | | Rotary Kiln | specifications(m) | Φ2.5×40 | Φ2.8×42 | Φ3×46 | Φ3.2×50 | Φ3.5×54 | Φ3.6×56 | Φ3.8×58 | Φ4×60/ Φ4.2×50 | Φ4.3×58 | Φ4.3×64 | | Φ4.8×68 | | | Effective volume(m3) | 142 | 190 | 235 | 292 | 390 | 430 | 505 | 575/548 | 670 | 738 | | 1005 | | | Combustion temperature | 1350/1250 | 1350/1250 | 1350/1250 | 1350/1250 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | | 1350 | | | cooler | Circular vertical cooler | Circular vertical cooler | Circular vertical cooler | Circular vertical cooler | Circular vertical cooler | square vertical cooler | square vertical cooler | square vertical cooler | square vertical cooler | square vertical cooler | | square vertical cooler | | | fuel | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | gas;
Pulverized coal | | gas;
Pulverized coal | | heat rate
(KJ/KgCaO) | 5300/5000 | 5300/5000 | 5300/5000 | 5300/5000 | 5225 | 5225 | 5100 | 5100 | 4810 | 4810 | | 4810 | |
Specification of Lime Rotary Kiln
| NO | Specification(m) | Drawing no. | The basic parameters | The main reducer | Main motor | Weight (t) |
| speed r/min | slope % | capacity t/d | model | Speed ratio i | model | power KW | speed r/min |
| 1 | Φ2.5×78 | J919 | 0.49~1.47 | 3.5 | 70~96 | PT800(3) | 61.88 | | 100 | | 327.5 |
| 2 | Φ3.2/3.4×60 | J935 | 0.67~2.0 | 3 | 400 | PT800(3) | 55.09 | | 100 | | 340.31 |
| 3 | Φ3.5×115 | 928 | 0.46~1.38 | 3.5 | 450 | PT800(3) | 61.88 | | 75×2 | | 776.81 |
| 4 | Φ3.6/3.8×70 | J939 | 0.4~2.0 | 3 | 600~660 | BST-1790 | 46.146 | | 160 | | 480.4 |
| 5 | Φ4.2×50 | J940A | 0.33~1.8 | 3 | 600~660 | PT900(3) | 56.43 | | 160 | | 521.3 |
| 6 | Φ4.2×50 | J944 | 0.2~1.8 | 3 | 600~660 | PT900(3) | 56.43 | | 160 | | 579 |
| 7 | Φ3×46 | J922A | 0.45~1.8 | 3 | 200~220 | ZSY450-63 | 63 | SZN4-225-21 | 55 | 1000 | 201.8 |
| 8 | Φ3.5×54 | J969A | 0.6~1.8 | 3.5 | 300~350 | ZSY560-56 | 56 | YP355S-8 | 132 | 750 | 340.7 |
| 9 | Φ4.3×64 | | 0.194~1.94 | 3.5 | 800 | ZSY630-71 | 71 | YZP355L-6 | 250 | 980 | 557.5 |
| 10 | Φ4.9×69.5 | | 0.179~1.79 | 3.5 | 1000 | ZSY710-63 | 63 | | <td text="" javascript"="">var guige_param=''; $(function() { wsf.userLike(22661870, 10, 'browse', '','browse', "zticltd"); }); |

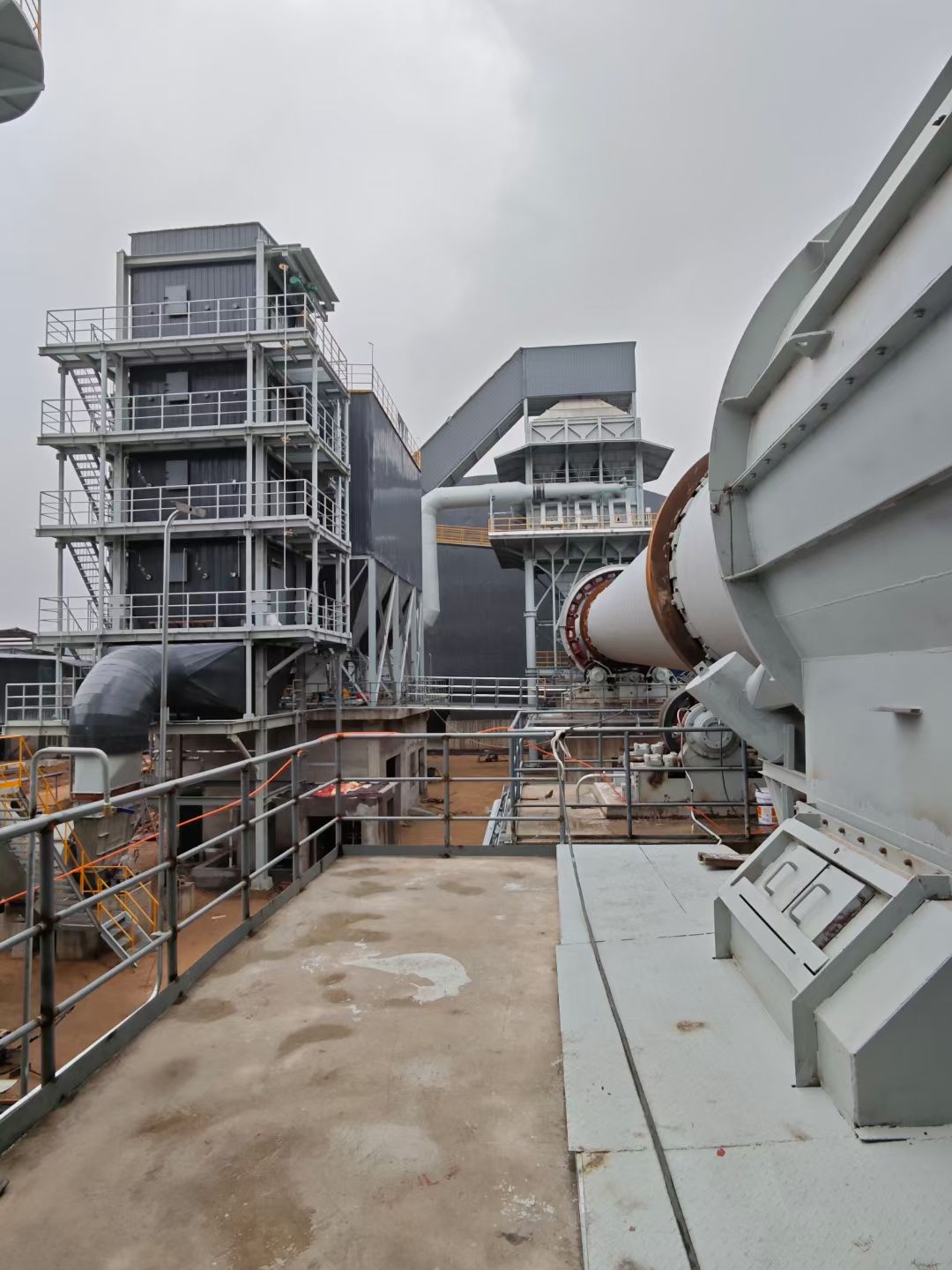

Product Display Of Cement Rotary Kiln
Cement Rotary Kiln
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
