Slow Drive Device For High Efficiency And High Quality Cement Rotary Kiln
Cement rotary kiln is a kind of lime kiln in the building materials equipment category. It is mainly used to calcine cement clinker and is an indispensable core equipment in cement production.
Cement Rotary Kiln Features
Rotary kiln is originally and widely applied to cement production, which is called the heart of cement plant. In the production of building material, Rotary kiln is used to calcine clay lime stone and cement clinker. In the production of refractory material, the kiln is used to calcine the material to extend of stable dimension, enough strength for machine-shaping.
Rotary kiln is rotary forging kiln for short, which is one of building material equipment. It is divided into cement kiln, metallurgy and chemical kiln and lime kiln as per the different material treatment. Cement kiln is applied to carline cement clinker, which has two types, dry-type cement production kiln and wet-type cement production kiln. Metallurgy and chemical kiln is mainly used to magnetizing roast lean iron ore, oxidation roast the nickel chromium iron ore in the steel and iron plant. It is also used to roast bauxite chamotte in the refactory plant and chamotte, aluminium hydroxide in alumimium plant,crome ore in the Chemical plant. Lime kiln is use to roast active lime and soft-burned dolomite in steel plant and iron alloy plant
Rotary kiln is one branch of rotary kiln system adopted in the steel and iron pellet with the extinguish design and structure. It is mainly composed of rotary parts, support parts, conveying parts, kiln head cover, kiln head and tail seal, combustion device. The ore, concentrate is sintered and calcined through rotary kiln. For example, aluminum hydroxide is calcined into alumina by the kiln in the aluminum production; Pellet ore for blast furnace is produced in the kiln in iron manufacturing. Iron ore is reduced directly through SL/RN process or Krupp process; Tin and lead can be refined through the kiln by chloridizing volatilization method .
In addition, there is over twenty years of history to burn the hazardous waste through rotary kiln in developed country with concern of environment. The hazardous waste can be not only reduced in quantity and risk level but also can be consumed as fuel to save energy.
Product parameterset and Dry Cement Rotary Kiln
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) |
| Diameter(m) | Length(m) | Obliquity(%) |
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 |
Product Display
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
|
|

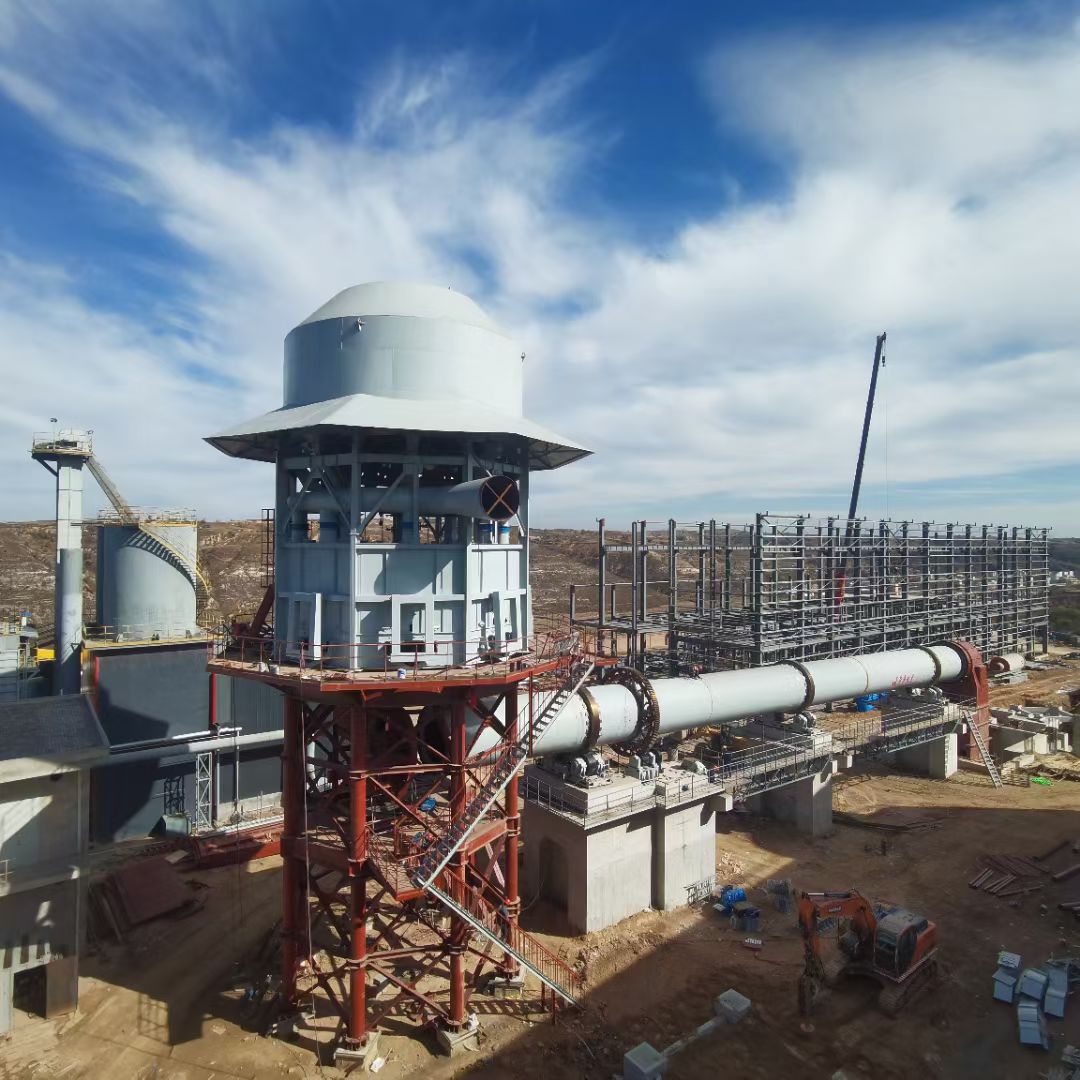

Slow Drive Device For High Efficiency And High Quality Cement Rotary Kiln Images
|
