Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

Name: AirSwept Coal Mill For Coal Powder Preparation With High Grinding Efficiency
Brand: ZTIC
Price: 1 USD

Quality Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency for sale

Brand Name : ZTIC

Model Number : Ore Grinding Mill

Certification : IOS

Place of Origin : Henan, China

MOQ : 1 set/sets

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 3000 Set/Sets per Year

Condition : New

Model : Air swept coal mill

Color : Customizable

Application : Ore Grinding

Feed size : ≤25mm

Warranty : 12 month

Name : Ore Grinding Mill

Rev : 22.4r/min

Production capacity : 8～9t/h

Load of grinding media : 18t

Weight : 36.7t

Speed ratio : 6.3

Contact Now

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

Air-swept coal mill is an industrial equipment used for grinding and drying coal of different hardness. It is mainly used in cement plants, thermal power plants, building materials, metallurgy, chemical industry and other industries.

Technical Features:

Drum mills utilize transmission types such as edge flyer, center drive, and multi-point meshing edge drive. Drive types include asynchronous motor + reducer + pinion + gear and synchronous motor + air clutch + pinion + gear.
They generally utilize hydrostatic and hydrodynamic bearings at both ends, employing fully enclosed, self-aligning 1200 linear contact rocker-type bearings. Single or double-slider hydrostatic and hydrodynamic bearings, or full hydrostatic support, are also available.
They are equipped with a reliably sealed gear cover and an automatic glycerin spray lubrication system.
The drum, a key component of the mill, undergoes computer-based finite element analysis to ensure reliability.
Large and medium-sized mills are equipped with a slow-speed drive.
Large and medium-sized mills are equipped with high- and low-pressure lubrication stations.
The control and protection system utilizes a PLC.

Product parameters of ore grinding mill

SPEC(diameter×length)	Rev (r/min)	Feed size(mm)	Production capacity(t/h)	Load of grinding media (t)	Main motor			Main reducing gear		Weight (t)
SPEC(diameter×length)	Rev (r/min)	Feed size(mm)	Production capacity(t/h)	Load of grinding media (t)	Type	Power (kw)	Re(rpm)	Type	Speed ratio	Weight (t)
φ2.2×4.4	22.4	≤25	8～9t/h	18t	YRKK4501-6	250	986	ZD60-11	6.3	36.7
φ2.2×5.8	22.4	≤25	5.5～7	23.5～25	Y4005-8	280	750	ZD70-10	5.6	45
φ2.4×4.75	21.2	≤25	14	22～24	YR4501-8	315	740	ZD60-8	4.5	49
φ2.4×4 2	20.2	≤25	10～11	19	YRKK450-8	250	740	ZDY355	4.5	60
φ2.4×4.5 2	20.2	≤25	10～12	20.8	YRKK500-8	280	740	JDX45	4.5	68
φ2.6×(5.25 2.25)	19.7	≤25	9～10	28	YRKK500-8	400	740	ZDY450	4.5	87.4
φ2.8×(5 3)	18.7	≤25	13～13.5	32	Y5001-8	500	740	JDX560	4.5	102
φ2.9×4.7	19.1	≤25	14～19	34.4	YR560-8	500	743	MBY560	5.6	79
φ2.5×3.9	21	≤25	14	21	JR138-8	280	740	ZD70-9	5	49.5
φ3×(6.5 2.5)	18.3	≤25	17～19	43	YRKK5603-8	630	740	MBY560	5	120
φ3.2×4.8	16.7	≤25	20	48	YR630-8	630	740	MBY560	5	118
φ3.2×(6.5 2)	16.9	≤25	20	50	YRKK560-8	710	740	JDX630	5	137
φ3.5×8	17.2	≤25	55～60	80	YRKK710-8	1000	740	MBY800	6.3	182
φ3.8×(7.75 3.5)	16.7	≤25	85	85	YRKK710-8	1400	740	JDX90-WX-2A	5.6	215

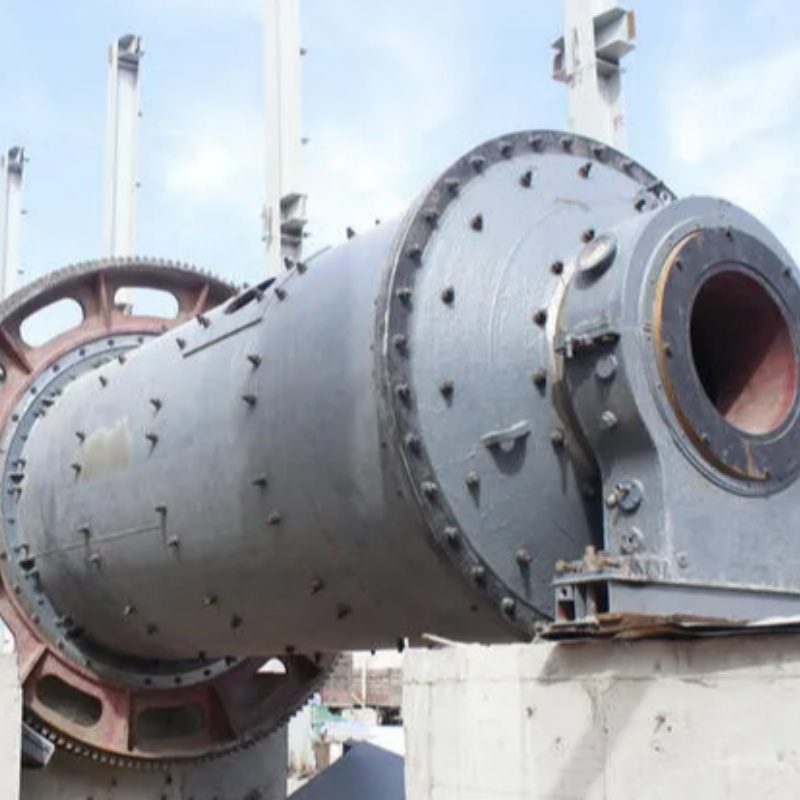

Product Display of ore grinding mill

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

Air-Swept Coal Mill For Coal Powder Preparation With High Grinding Efficiency Images
